The world of radio frequency (RF) systems is a complex landscape filled with jargon and intricate principles. One pivotal concept that frequently surfaces in discussions about RF is “power flux density.” This term refers to the power per unit area carried by an electromagnetic wave, often quantified in watts per square meter (W/m²). Understanding power flux density is crucial, as it impacts everything from the design of RF antennas to the optimal positioning of transmission equipment. In modern RF engineering, utilizing a Power Flux Density Calculator can streamline calculations and enhance comprehension. This article will elucidate the process of employing such a calculator effectively.
In essence, the Power Flux Density Calculator serves to provide precise measurements and predictions for RF power distribution. The calculator is an instrument of notable importance for engineers, researchers, and technicians alike, enabling the determination of how much power is emitted from a source and its subsequent density over a specified area. Armed with this understanding, professionals can make informed decisions that enhance efficiency and safety in RF systems.
To begin your journey with a Power Flux Density Calculator, it is imperative to gather the necessary parameters for calculations. The fundamental inputs include the transmitting power (in watts) and the distance from the transmitter (in meters). Both parameters play a pivotal role in influencing the resultant flux density. Once these figures are at hand, the calculator can yield power flux density with remarkable accuracy.
1. **Determine the Transmission Power**: Start by identifying the total power output of your transmitter. This value should encapsulate the entire power produced, inclusive of any amplification or modulation that occurs before the signal is broadcast. It is essential to use a consistent unit for power, and the watt (W) is the standard choice in RF calculations. Accurately assessing this value is vital, as any discrepancies will propagate through your calculations.
2. **Measure the Distance**: The next critical input is the distance from the source at which you wish to calculate power flux density. This distance, typically measured in meters, significantly influences the area over which the power dissipates. As electromagnetic waves propagate, they inherently disperse; thus, understanding the spatial relationship is fundamental to deriving accurate results.
3. **Use the Calculator**: With your measurements in tow, locate an accessible Power Flux Density Calculator online. Input the determined transmission power and distance into their respective fields. Ensure the selections align with the units of measurement you have chosen. The calculator will then execute the necessary computations, applying the standard formula for power flux density:

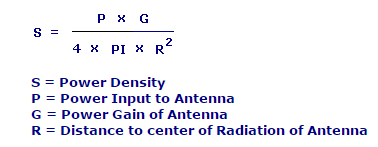

PFD (W/m²) = P (W) / (4πr²)
Where PFD represents power flux density, P signifies the power in watts, and r is the distance from the transmitter in meters. The use of 4π in the denominator is a reflection of the spherical dispersion of electromagnetic energy.
4. **Interpret the Results**: Once the computation is complete, the calculator will display the power flux density value. This figure provides insight into the intensity of the RF transmission at the specified distance, which can aid in evaluating whether a particular setup adheres to safety regulations or meets the operational requirements for your project. Understanding these results can inform decisions on antenna placement, allowable exposure limits, and equipment specifications.
5. **Consider Environmental Factors**: While calculators provide a great starting point, it is crucial to take into account environmental variables that may influence actual measurements. Elements such as terrain, atmospheric conditions, and the presence of obstacles can all affect how RF waves propagate. For instance, urban environments with high structures may result in increased signal attenuation compared to open landscapes. Therefore, it is beneficial to corroborate calculator results with empirical measurements whenever possible.
6. **Reassess Regularly**: RF systems are seldom static; modifications and upgrades may necessitate revisiting power flux density calculations. New equipment, repositioned antennas, or changes in transmission power require fresh computations to ensure compliance with safety standards and operational efficiency. Engaging in periodic assessments ensures that your RF systems remain within prescribed limits.
Ultimately, the implementation of a Power Flux Density Calculator provides a structured method for navigating the complexities inherent in RF signal distribution. It not only enhances understanding but also empowers professionals to make judicious and informed decisions regarding RF communication systems. In a landscape punctuated with advancements in wireless technology, such tools are indispensable.
By harnessing the power of precise calculations, engineers can mitigate risks while optimizing their designs, ensuring efficient and safe operation of RF technologies. Embracing this meticulous approach serves not only the immediate objectives but also the overarching goal of advancing the field of radio frequency engineering.
